1000V DC 120A 150A 200A 2Pin Straight Angle Electric Plug Socket Connector

Part No.: 1127

Description:

Features:

• Secondary lock function

• Cable range: 25~50mm²

• Poka-yoke

• HVIL

• Touch-proof

• 360°shielding

Application:

• Motor controller
• Lithium battery, lead-acid battery
• Driving system
• charging system

Specifications:

• Rated current: 120A (25mm²) 150A (35mm²), 200A (50mm²)
• Rated voltage:1000V
• Insulation resistance: ≥4000mΩ(power)≥1000mΩ(signal)
• Dielectric withstanding voltage:3500V AC (power), 1000V AC(signal)
• Temperature Range: -40~+125 ℃
• IP Rating: IP67&IP6K9K,IPXXB

Parameters:

Product Pictures:

Drawings:

C1127-EV-P(2+2) PA~B 2pin 180°plug

C1127-EV-P(2+2) PC~H 2pin 180°plug

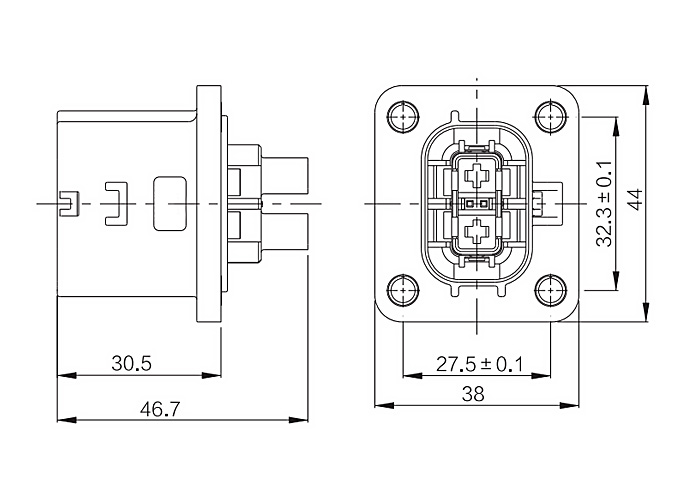

C1127-EV-P(2+2) RA~B 2pin Receptacle

C1127-EV-P(2+2) RC~D 2pin Receptacle

C1127-EV-P(2+2) RA~B 2pin Receptacle Interface Mounting Design

C1127-EV-P(2+2) RC~D 2pin Receptacle

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
